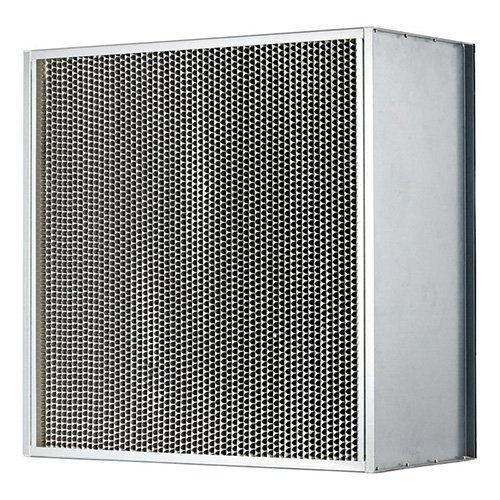

Deep Pleated Filters
- Media: Fiberglass;
- Frame: Galvanized steel/ Stainless steel/ Wood particle board;
- Header: Box/ Single header/ Double header;
- Gasket: None/ Upstream face/ Downstream face/ Both;
- Separator: Aluminum foil/ Paper;
- Depth: 3/ 6/ 12 in;
- EN 1882 Ratings: E10/ E11/ E12/ H13/ H14;
- MERV Ratings: MERV 8/ MERV 11/ MERV 13/ MERV 15/ HEPA;
- Customization: Dimensions/ Frame/ Gasket/ Sealant/ Packaging.
Description
The HEPA media is made of superfine fiberglass, which separated with aluminum foil or paper, frame are made of rigid galvanized steel, stainless steel or wood particle board as requested.
Deep pleated filters are designed to HEPA filter to provide the highest level of filtration available for commercial and industrial appliances, widely used for hospital, electronics manufacturing, food and beverage, precision machinery, semiconductor production and the like application that require very high levels of filtration demands. Filtration efficiency would be made by the usage and demand, available in efficiencies of 95%, 99.97% and 99.997% (EN 799) down to 0.3 micron size particles.
Dimensions
3 inch Depth
- 8 x 8 x 3
- 12 x 12 x 3
- 12 x 24 x 3
- 24 x 24 x 3
6 inch Depth
- 8 x 8 x 6
- 12 x 12 x 6
- 12 x 24 x 6
- 18 x 18 x 6
- 18 x 24 x 6
- 20 x 16 x 6
- 20 x 20 x 6
- 20 x 24 x 6
- 24 x 12 x 6
- 24 x 18 x 6
- 24 x 20 x 6
- 24 x 24 x 6
- 24 x 30 x 6
- 24 x 36 x 6
- 24 x 48 x 6
- 24 x 60 x 6
- 25 x 16 x 6
- 25 x 20 x 6
- 30 x 24 x 6
- 36 x 24 x 6
12 inch Depth
- 12 x 12 x 12
- 12 x 24 x 12
- 18 x 18 x 12
- 18 x 24 x 12
- 20 x 16 x 12
- 20 x 20 x 12
- 20 x 24 x 12
- 24 x 12 x 12
- 24 x 18 x 12
- 24 x 20 x 12
- 24 x 24 x 12
- 24 x 30 x 12
- 25 x 16 x 12
- 25 x 20 x 12
- 30 x 24 x 12
